ANOVA

This example performs mass-univariate ANOVA using testnd.ANOVA. The example shows a 2 x 2 repeated measures ANOVA. For specifying different ANOVA type models see the test.ANOVA documentation. The example uses simulated data meant to vaguely resemble data from an N400 experiment (not intended as a physiologically realistic simulation).

from eelbrain import *

Simulated data

Use datasets.simulate_erp() to generate a dataset simulating an N400 experiment, as in the T-test example. Set short_long=True to simulate word length as a second variable, resulting in a 2 x 2, predictability x word length design.

s_datasets = []
for subject in range(10):
    # generate data for one subject
    s_data = datasets.simulate_erp(seed=subject, short_long=True)
    # average across trials to get condition means
    s_data_agg = s_data.aggregate('predictability % length')
    # add the subject name as variable
    s_data_agg[:, 'subject'] = f'S{subject:02}'
    s_datasets.append(s_data_agg)

data = combine(s_datasets)
# Define subject as random factor (to treat it as random effect in the ANOVA)
data['subject'].random = True
data.head()
# n cloze predictability n_chars length subject
0 20 0.87997 high 4.6 short S00
1 20 0.88104 high 8.2 long S00
2 20 0.17447 low 3.6 short S00
3 20 0.17035 low 8.9 long S00
4 20 0.88708 high 3.8 short S01
5 20 0.90223 high 8.4 long S01
6 20 0.11018 low 4.3 short S01
7 20 0.16538 low 8.25 long S01
8 20 0.90949 high 3.95 short S02
9 20 0.89482 high 8.25 long S02
NDVars: eeg


Re-reference the EEG data (i.e., subtract the mean of the two mastoid channels):

data['eeg'] -= data['eeg'].mean(sensor=['M1', 'M2'])

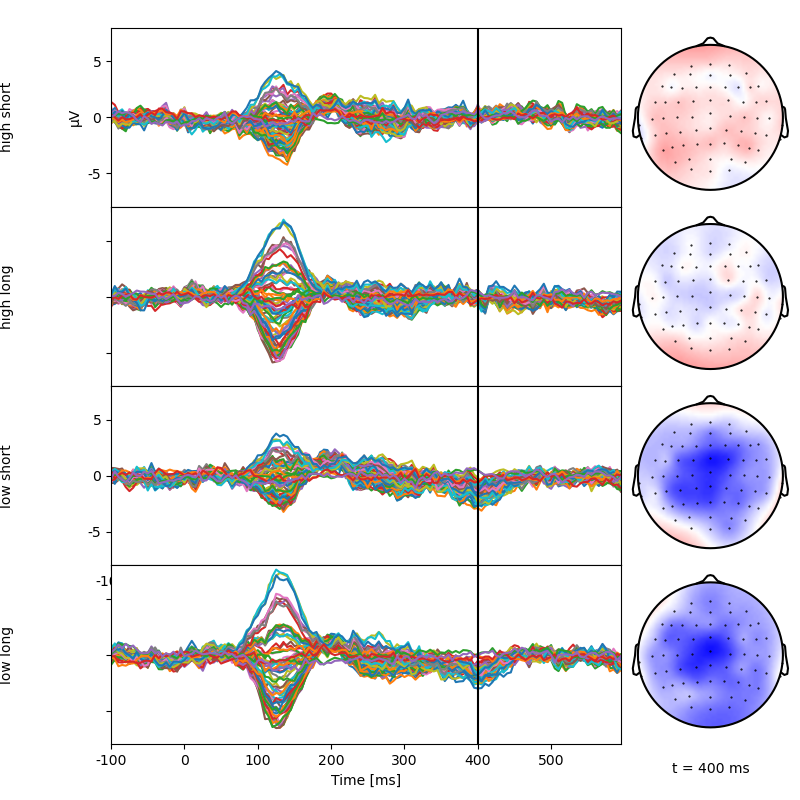

Plot the data by condition to illustrate the effect. Note 2 effects in the simulation: an early ~130 ms peak determined by word length, simulating increased visual processing for longer words; and a later “N400” predictability peak, simulated to be larger for more surprising (less predictable) words.

p = plot.TopoButterfly('eeg', 'predictability % length', t=.400, data=data, axh=2, w=8, clip='circle')
sensor anova

Spatio-temporal test

testnd.ANOVA provides an interface for mass-univariate ANOVA. The ANOVA function determines whether to perform a repeated measures or fixed effects ANOVA based on the model. Here, 'predictability * length * subject' is a repeated measures ANOVA because we defined data['subject'] as random effect above. Changing the model to 'predictability * length' would perform a fixed effects ANOVA.

result = testnd.ANOVA(
    'eeg',
    'predictability * length * subject',
    data=data,
    pmin=0.05,  # Use uncorrected p = 0.05 as threshold for forming clusters
    tstart=0.050,  # Find clusters in the time window from 100 ...
    tstop=0.600,  # ... to 600 ms
    samples=1000,  # smaller number of permutations to speed up the example; use 10'000 when the exact p-value matters
)
